10 Best LCR Meters for Component Testing in 2026

Choosing the right meter can make component checks faster, clearer, and far more reliable. The best LCR meters for component testing help you verify values, spot bad parts, and work confidently on repairs or builds.

Below, we focus on practical tools that balance measurement range, frequency options, display quality, and everyday usability for bench and field work.

Best 10 LCR Meters for Component Testing Picks for 2026

Precision Bench-Style Choice – DE-5000 Handheld LCR Meter

If you want one of the more capable LCR meters for component testing, the DE-5000 stands out for its auto-ranging measurement of inductance, capacitance, and resistance with direct AUTO-LCR operation. It also adds secondary readings like D, Q, phase angle, and ESR/Rp, plus selectable test frequencies up to 100kHz for more flexible component checks.

Best For: Users who want a high-accuracy handheld meter for detailed passive component testing and sorting.

Pros:

• Measures L, C, and R with dual-display 19,999/9,999 counts.
• Supports 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz test frequencies.
• Includes AUTO-LCR smart mode and automatic series/parallel selection.
• Sorting mode helps quickly sort batches of components.

Cons:

• IR-to-USB cable is listed as optional, not included.
• Uses a battery-powered design rather than a rechargeable pack.
• More meter than casual users may need for very basic checks.

Overall, the DE-5000 is a strong pick when you need more measurement depth than a basic component tester. Its frequency options and secondary parameters make it especially useful for serious troubleshooting and component matching.

Feature-Rich Modern Pick – FNIRSI LC1020E 100kHz LCR Meter

The FNIRSI LC1020E is a feature-packed option in LCR meters for component testing, combining automatic component detection with dual-parameter display for capacitance, resistance, and inductance. It supports frequencies up to 100kHz, open/short calibration, and comparison-based sorting, making it practical for screening parts with tighter tolerances.

Best For: Users who want a modern LCR meter with a color screen, sorting functions, and calibration tools.

Pros:

• Displays main and secondary parameters together, including X, D, Q, θ, and ESR.
• Supports open/short calibration and adjustable test voltage.
• Sorting and comparison mode calculates relative error and tracks pass/fail counts.
• 2.8-inch TFT color display with brightness control and Type-C charging.

Cons:

• Requires careful setup, including open/short calibration before measurement.
• Not meant for live circuit testing.
• Capacitors and inductors must be fully discharged first.

This is a good choice if you value guided component screening and a more interactive interface. Its combination of display quality, calibration support, and sorting tools makes it well suited to repetitive test workflows.

Budget-Friendly Basic Tester – Proster LCR Meter

The Proster is a straightforward choice if you need practical LCR meters for component testing without moving into more advanced features. It measures capacitance, resistance, and inductance, includes data hold and auto power-off, and its rotating LCD helps when you want an easier viewing angle during quick bench checks.

Best For: Hobbyists who want an affordable, easy-to-use tester for routine capacitor, resistor, and inductor checks.

Pros:

• Measures capacitance, resistance, and inductance in a compact handheld format.
• Rotatable LCD improves viewing from different angles.
• Includes data hold, low-power indication, and auto power-off.
• Comes as a complete kit with leads, clips, battery, and storage bag.

Cons:

• Uses a 3 1/2 digit display, so it is less advanced than higher-count meters.
• Fewer advanced measurement parameters than premium options.
• Best suited to basic component checks rather than deeper analysis.

The Proster works best as a simple everyday tester for common passive parts. If you mainly need quick identification and basic troubleshooting, it covers the essentials without extra complexity.

Multifunction Tester Pick – FNRSI LCR-P1 Transistor Meter

The FNRSI LCR-P1 goes beyond standard LCR meters for component testing by adding transistor, diode, MOSFET, and infrared decoding functions. It is designed for one-button identification of many component types, and it can export data to a PC for deeper analysis, which makes it useful when your testing needs extend past simple L, C, and R checks.

Best For: Users who want a multifunction component tester that also handles semiconductors and SMD parts.

Pros:

• Tests resistance, capacitance, inductance, transistors, diodes, and multiple FET types.
• One-button operation with anti-burn protection.
• Supports USB data transfer and Excel export.
• Includes a color backlit screen and replaceable test boards.

Cons:

• Inductance range is narrower than some dedicated LCR meters.
• Not as specialized for frequency-based passive component analysis.
• More of a multifunction tester than a pure LCR-focused instrument.

If you want a tester that covers semiconductors as well as passive parts, this model is especially versatile. It is a practical bench companion when component identification matters more than deep LCR-only measurement features.

Lab-Grade Component Tester – Extech LCR200 Passive Component Meter

If you want an LCR meter for component testing with more measurement depth than a basic handheld checker, the Extech LCR200 is built around bench-style accuracy and controls. It measures inductance, capacitance, and resistance, while also showing Q, dissipation factor, phase, and ESR, making it useful when you need more than just a pass/fail reading.

Best For: Electronics users who want a more feature-rich meter for testing passive components and checking secondary parameters.

Pros:

• Measures L, C, and R plus Q, D, phase, and ESR
• Dual backlit display shows primary and secondary values together
• Five selectable test frequencies from 100 Hz to 100 kHz
• Includes open/short calibration and a built-in test fixture

Cons:

• Runs on a 9V battery rather than rechargeable power
• Less portable than compact pocket-style testers

Overall, this is a solid choice if your component testing involves comparing parts across multiple frequencies and you want the added context of secondary LCR readings. The included fixture, calibration support, and dual display make it especially practical for workbench use.

Portable Multi-Tester – FORIOT LCR-TC1 Transistor & ESR Checker

For budget-friendly LCR meters for component testing, the FORIOT LCR-TC1 is aimed at quick checks of common parts in a compact form. It measures inductance, capacitance, and resistance, and the product notes also position it as a transistor and ESR tester with a TFT full-color display for easier reading.

Best For: Hobbyists, repair work, and learning labs that need a small all-in-one component tester.

Pros:

• Measures L, C, and R in a compact handheld design
• Includes a TFT full-color display for easier viewing
• Useful for testing transistors, Zener diodes, capacitors, and other parts
• Battery-powered and easy to carry for field use

Cons:

• Notes do not list detailed frequency options or advanced display counts
• More of a portable tester than a precision bench meter

In practice, this is the kind of tool you pick when convenience matters most and you want a fast, general-purpose component checker. It should suit repair benches, hobby setups, and educational use where portability and broad part coverage are more important than advanced measurement features.

Handheld Bridge Tester – ET430 100kHz Portable LCR Meter

The ET430 is a handheld option for LCR meters for component testing when you want portability without giving up a real measurement workflow. It measures resistance, capacitance, and inductance, and the dual-parameter TFT display shows primary values alongside D, Q, phase angle, and ESR.

Best For: Technicians who want a portable LCR meter with a color display and multiple test frequencies.

Pros:

• Supports L, C, and R measurements with secondary parameters
• 2.8-inch color LCD shows dual-parameter readings
• Six test frequencies from 100 Hz to 100 kHz
• Listed 0.3% basic accuracy and open/short setup guidance

Cons:

• Accessories listed do not include Kelvin test clips
• Battery-powered design may be less convenient for long bench sessions

For users who want a portable meter that still offers frequency flexibility and a richer display, the ET430 stands out as a practical field-and-bench hybrid. The open/short calibration note and dual-parameter screen make it better suited to serious component work than a bare-bones tester.

Budget auto component tester – HiLetgo LCR-T4 Multifunctional Tester

If you want low-cost LCR meters for component testing, the HiLetgo LCR-T4 is a simple bench helper for quickly identifying common parts. It automatically recognizes resistors, capacitors, diodes, transistors, MOSFETs, SCRs, and inductors, and the 128×64 LCD can show both measured data and graphics for easier reading.

Best For: Hobbyists and repair users who need a basic automatic component tester for quick part identification.

Pros:

• Automatic recognition of NPN/PNP transistors, MOSFETs, diodes, resistors, capacitors, and more
• 128×64 green backlit LCD for readable results and graphics
• Fast detection for many parts, with about 1.7-second short detection time
• Can run on a 9V battery or DC 6.8-12V power

Cons:

• Bulk capacitor detection can take about 1 minute
• 9V battery is not included
• More of a component identifier than a full-featured bench LCR instrument

This is a practical pick if you mainly need fast automatic part checks rather than advanced measurement controls. Its strength is convenience: drop in a component, get an identification and basic readout, and move on.

SMD repair tweezer tester – FNIRSI LCR-ST1 Smart Tweezer Meter

Among LCR meters for component testing, the FNIRSI LCR-ST1 stands out for SMD work because it uses tweezer probes and automatic component recognition. It supports resistance, capacitance, inductance, diodes, ESR, and related parameters, with selectable 100 Hz, 1 kHz, and 10 kHz test frequencies for more flexible checks.

Best For: SMD repair, board troubleshooting, and users who want a portable tweezer-style tester with data storage.

Pros:

• Auto recognition of electronic components with primary and secondary parameter display
• Supports resistance, capacitance, inductance, diodes, ESR, D, Q, Z, and more
• Three test frequencies and two excitation levels for broader measurement options
• Can save records and export data to a PC via Excel

Cons:

• Fixed screen design does not support flipping or rotating
• Smaller tweezer format may be less comfortable for some non-SMD tasks
• Best suited to small components rather than general-purpose bench testing

This is a strong choice if you spend time on SMD boards and want fast access to component values without pulling parts off the PCB. The storage and PC export features also make it more useful for repeat diagnostics.

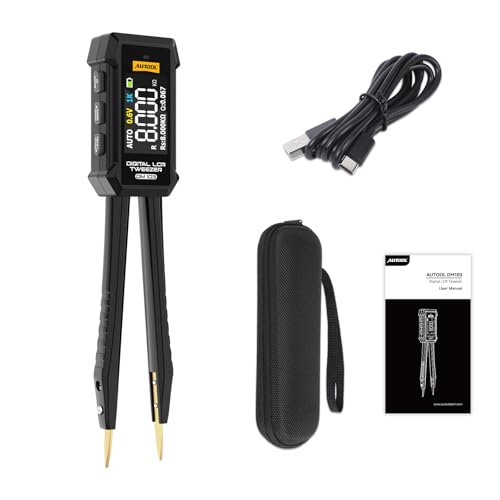

Precision SMD analysis tool – AUTOOL DM103 Smart LCR Tweezer Meter

If you need LCR meters for component testing in a repair or lab setting, the AUTOOL DM103 is built for accurate SMD measurements with smart auto-identification. It recognizes resistors, capacitors, and inductors automatically, supports 100 Hz, 1 kHz, and 10 kHz test frequencies, and shows primary as well as secondary parameters for deeper analysis.

Best For: Electronics technicians and lab users who want a precision tweezer-style LCR meter for SMD work.

Pros:

• Automatic identification of resistors, capacitors, and inductors
• Selectable 100 Hz, 1 kHz, and 10 kHz frequencies with 0.3V/0.6Vrms excitation
• Displays R, C, L plus RS, D, Q, Z, and X for more detailed analysis
• HD IPS color display and gold-plated probes for clear viewing and stable contact

Cons:

• Primarily focused on SMD components and tweezer-style testing
• Heavier than ultra-compact alternatives at 165 grams
• Higher-end feature set may be more than casual users need

The DM103 is the most analysis-oriented option here, especially if you value secondary measurements and a clearer display. Its professional probe design and firmware upgrade support make it a solid long-term tool for repeated component checks.

How We Picked These LCR Meters for Component Testing

We looked for meters that make real-world component verification easier, not just tools with impressive spec sheets. Priority went to measurement stability, supported test frequencies, auto-detection features, readable displays, and usefulness across capacitors, inductors, resistors, and common semiconductor checks where applicable.

We also favored options that suit different workflows: handheld meters for general electronics work, bench-friendly testers for more frequent use, and tweezer-style models for fast SMD testing. That mix helps buyers choose based on how they actually test parts.

Quick Comparison

If you want broader versatility, a handheld meter with multiple test frequencies is usually the best all-around choice. If you mainly sort or verify small surface-mount parts, a tweezer tester can be much faster. For hobbyist component identification, multifunction testers are convenient, but they are not a substitute for a true LCR meter when accuracy and repeatability matter most.

Key Buying Factors for LCR Meters for Component Testing

Test Frequency

Frequency affects how inductors and capacitors behave during measurement. Lower frequencies are often fine for basic checks, while 100 kHz-capable meters are better when you want more insight into real component behavior, especially for capacitors and inductors used in filters and power circuits.

Accuracy and Counts

Higher counts and stable readings usually make it easier to distinguish good parts from marginal ones. For repair work, repeatability matters just as much as headline precision.

Display and Ease of Use

A clear screen, auto-ranging, and quick component detection save time. This is especially important when testing many parts or working in low-light environments.

Form Factor

Handheld meters are more versatile, while tweezers are ideal for tiny SMD parts. If you work on mixed through-hole and surface-mount boards, it may be worth considering both styles over time.

Extra Functions

Features like ESR, Q, D, theta, diode checks, and transistor testing can add value, but only if they support your workflow. For focused measurement tasks, a simpler and more dedicated LCR meter may be the better investment.

Who Should Buy Which LCR Meters for Component Testing?

Choose a full-featured handheld meter if you want the most balanced option for repair, prototyping, and component verification. Pick a bench-oriented or higher-frequency model if accuracy and repeatability are more important than size. Go with an SMD tweezer tester if speed and convenience matter most for small parts. If you are a hobbyist or beginner, a multifunction tester can be a useful starting point, but serious component evaluation is better served by dedicated LCR Meters for Component Testing.
